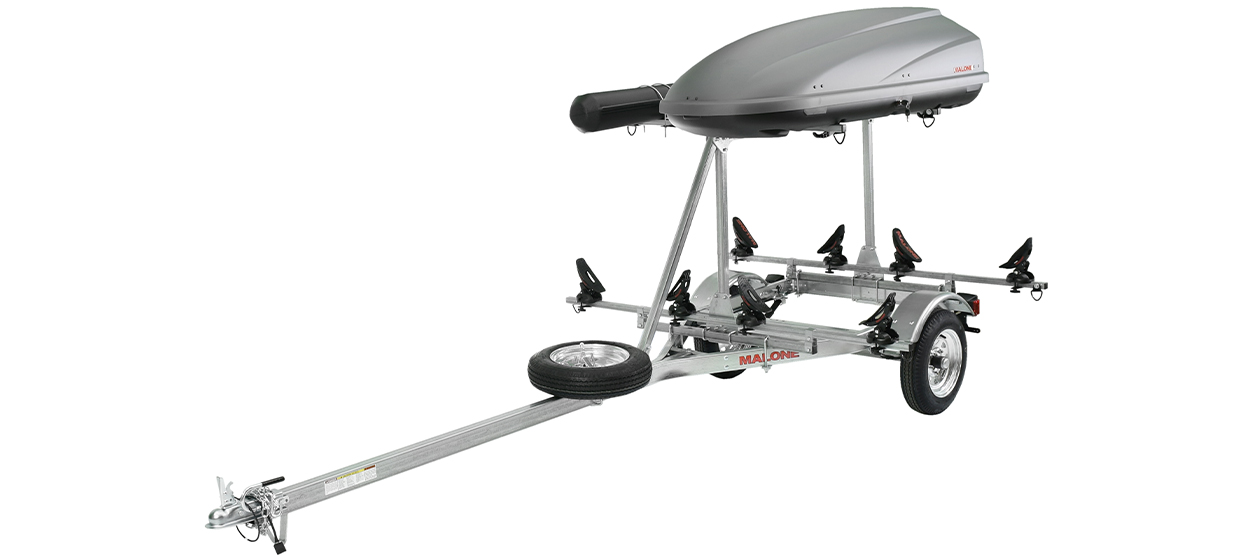

MicroSport™ LowBed™ Trailer w/Tier, Spare, 2 sets SaddleUp™, Cargo Box, Rod Tube

Oversized delivery charge. $265 Per MicroSport Trailer with Cargo Box.

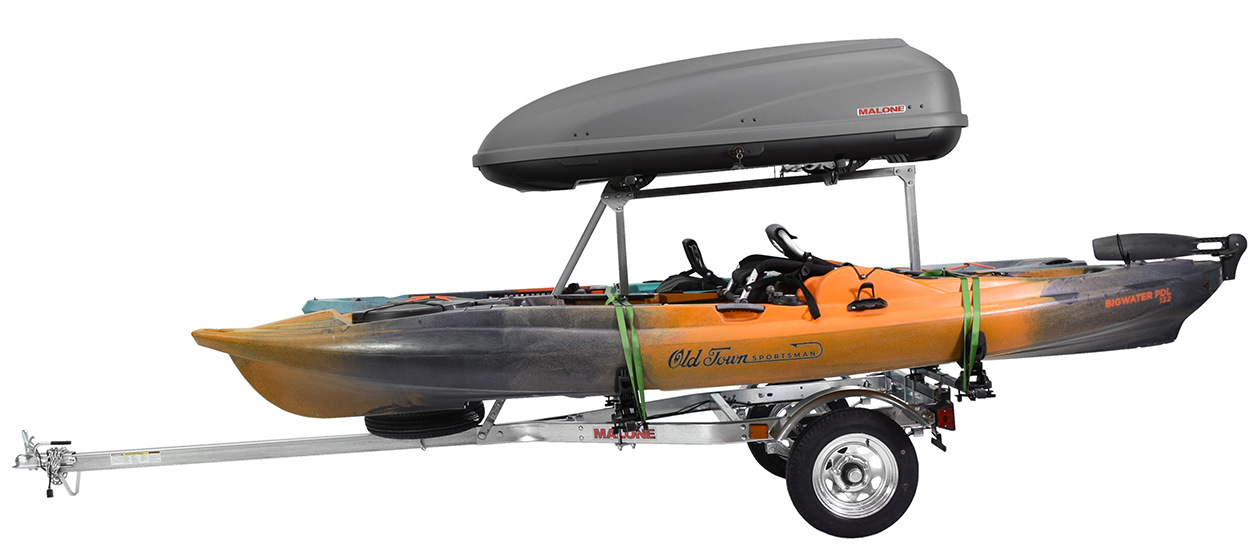

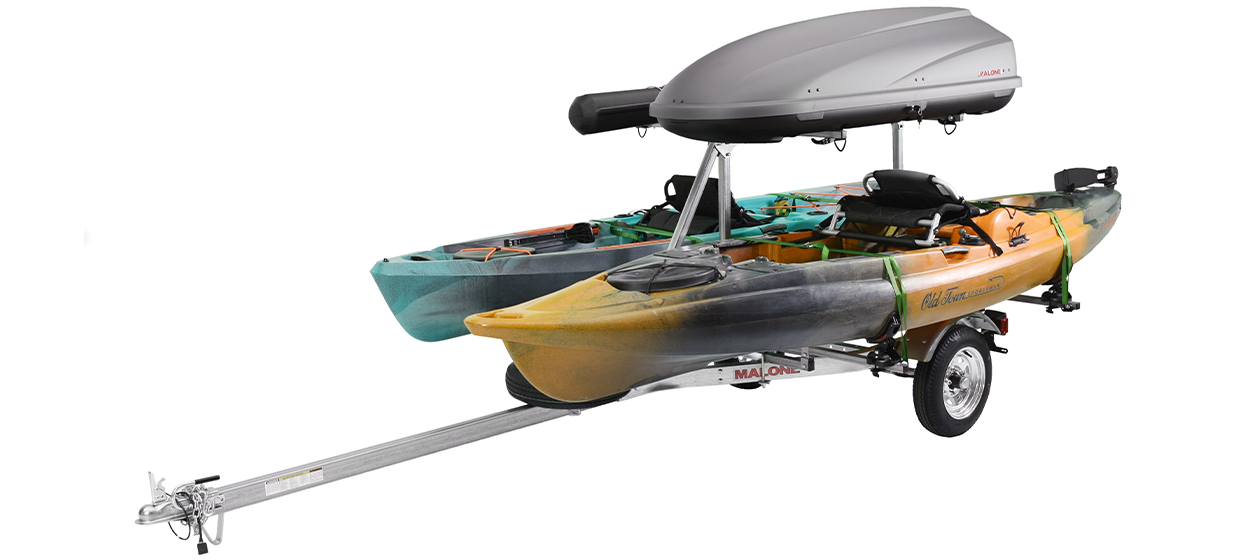

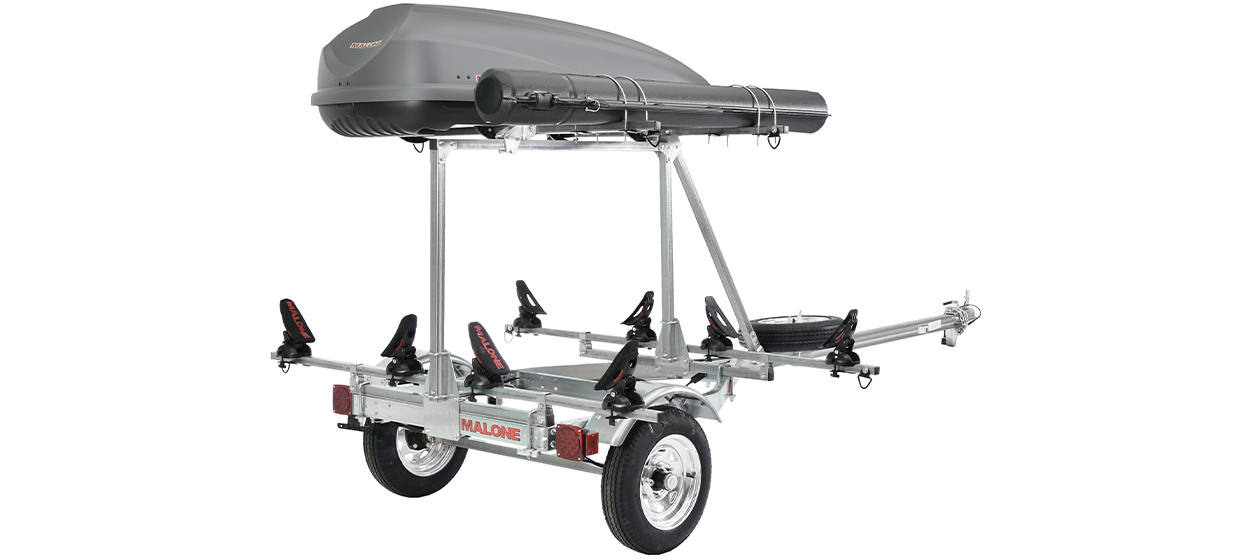

The MPG464-LBTS MicroSport™ LowBed™ package combines our new low profile trailer with a cross section of options to create the perfect multiple kayak transport system. Each unit is fitted with a 2nd Tier Kit, which is designed to hold the Malone Cargo16™ Roof Box and MPG541 Fishing Rod Storage Tube included with the kit.

The 78" load bars are positioned 22” from the ground and easily provide room for the MPG110 SaddleUp™ Kayak Carriers. Loading and unloading large recreational and fishing kayaks is simple, safe and avoids lifting challenges. These galvanized marine grade trailers can be backed down a boat ramp so the boats can be launched directly into the water.

The 2nd Tier has a 100 lb. load rating with 50” long upper load bars that provide a comfortable height (58”) to access the cargo box and Rod Storage Tube. Other features include submersible LED lighting, Spare Tire with Locking Attachment and a Class II, 2" hitch receiver.

This 800 lb. load rated trailer is DOT and Transport Canada approved and assembles in approximately three to four hours with standard tools. Includes a Five Year Limited Warranty and is proudly, Made in the USA.

Features:

  • Pre-assembled hubs for a clean and simple installation

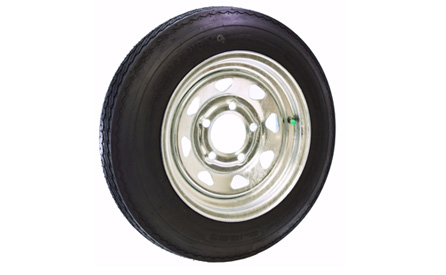

  • 12" galvanized wheels with marine grade sealed bearings
  • Reinforced steel tongue can transport boats up to 20' in length
  • 78’’ steel, 1-1/4’’ square load bars featuring d-ring tie-downs
  • 50" steel, 1-1/4’’ square upper load bars with 2nd Tier Kit
  • 11 gauge pre-galvanized steel construction for years of service
  • Five Year Limited Warranty - Made in the USA

Specifications:

  • Load Capacity: 800 lb / 20' canoe or kayak
  • Dimensions: 13' 3" (length)
  • Width (Without crossbars): 55"
  • Frame Width Assembled (Width within Fenders): 40"
  • Weight (Without accessories): 197 lb
  • Frame: Marine grade galvanized steel
  • Hitch: 2" Class II receiver
  • Required Ball Size for Vehicle Attachment: 2"
  • Mounting Height for Ball from Ground: 18"
  • Recommended Tire Pressure: 35 to 40 PSI
  • Tongue Weight (Unloaded): 25 lb
  • Lower Cross Bar Spread (Adjustable): 44" - 63"
  • Height of Upper Cross Bars from Ground: 58"
  • Height of Lower Cross Bars from Ground: 22"

What’s In The Box:

  • (1) LB 2nd Tier w/ Load Bars
  • (1) MPG465 Spare Tire with Locking Attachment
  • (1) MPG541 Fishing Rod Storeage Tube
  • (2) MPG110 SaddleUp™ Kayak Carriers (set of 2)
  • (1) MPG902 Cargo16™ Rooftop Box
  • (2) 12" High Speed Wheels
  • (1) Reinforced Steel Tongue
  • DOT Approved LED Lighting
  • Pre-Tested Electrical System
  • Pre-Fitted Chassis Components
  • (1) Instruction Manual & Registration Documentation
  • Total Shipment: 8 Cartons
  • Product Ships by Truck Freight

Details / Manuals

Click To Download
