FoldAway-5™ Multi-Rack Carrier with T-Slot Hardware. SKU# MPG1025.

USER MANUAL
LIMITED LIFETIME WARRANTY

Our complete FoldAway-5™ Multi-Rack Carrier package includes attachment hardware for aero style roof racks, truck rack systems and a vehicle's traditional cross bars for maximum compatibility.

The FoldAway-5™ can carry a single recreational or touring kayak on it's side, vertically stack two kayaks, carry a canoe or large sit-on-top kayak, and transport any size SUP. Featuring a pair of quick-release fold-down frames with removable 2-boat modules for transporting wide loads. Each set of carriers are built with corrosion resistant coated steel, thick over-sized padding and heavy-duty molded parts.

Features:

Quick release fold-down frames for low clearance
Universal mounting adapters fit most load bar designs
Two lengths of mounting bolts for improved bar fit
Includes 11' load straps and tie-downs for a single kayak

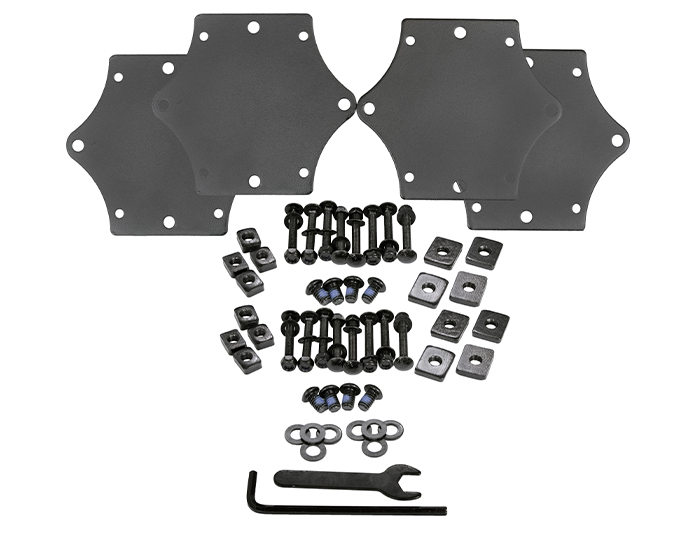

T-slot hardware kit fits most aftermarket aero style roof racks & aluminum truck racks with top side T-slots
Includes a custom hex, and open end wrench for quick installation of this upgraded fit kit
Lifetime Limited Warranty

Specifications:

Weight: 14.5 lb
Dimensions (folded): 19.5" x 8.5" x 3.5"
Dimensions (deployed): 19.5" x 8.5" x 14"
Load Capacity: 2 boats - 75 lb maximum weight limit per boat
Compatible with most load bars up to 1.5" tall x 3.5" wide (use 80mm bolts provided)

Installation:
- Always refer to Malone’s Fit Guide for proper, correct and approved vehicle fit.
- Bow and stern safety tie-downs are required for all Malone rooftop transport(s). Failure to correctly install and use safety tie-down lines voids all warranty and liability.
- Carefully review instructions and register your warranty prior to first time use.
- Malone carriers come with two lengths of mounting bolts in order to achieve the best cross bar fit. Retain unused bolts for future use with different cross bars.
- The carrier base has a rectangular "cutout" for square cross bar fit. The "cutout" will not affect the fit or function when installed to round or oval cross bars.
- Optional longer length mounting bolts sold separately

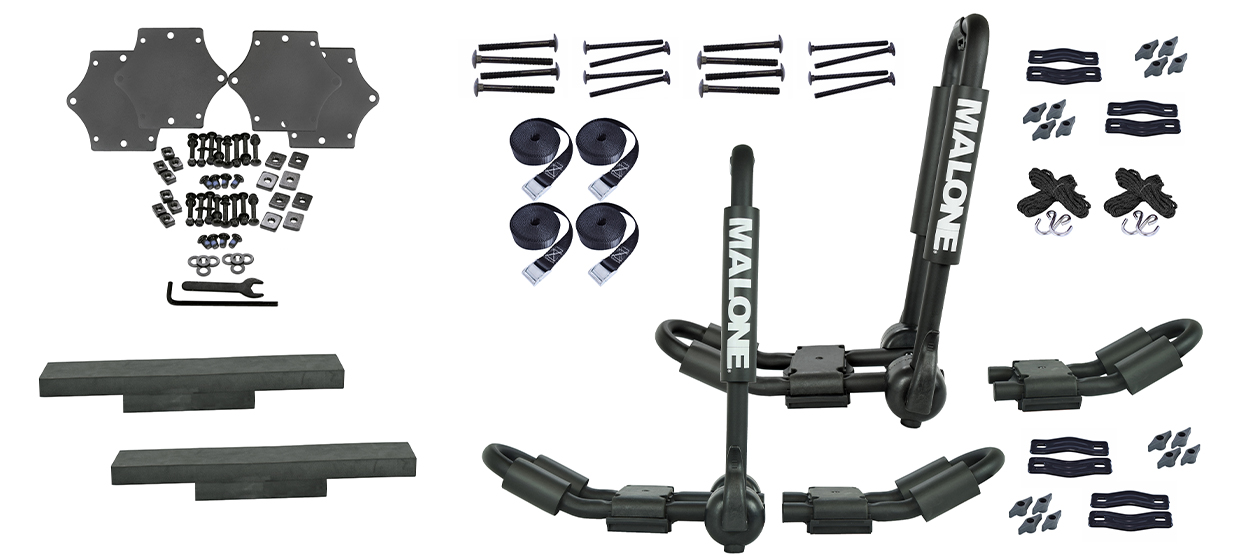

What’s In The Box:
- (2) Fold-Down Carriers
- (2) MultiRack Extension Modules
- (16) M6 x 1mm zinc coated 60mm Mounting Bolts
- (16) M6 x 1mm zinc coated 80mm Mounting Bolts
- (16) M6 T-Knobs
- (8) Universal Mounting Brackets
- (2) SUP Foam Blocks
- (4) 11' Cam Buckle Load Straps
- (4) Bow and Stern Safety Lines w/ S-Hooks
- (1) Instruction Manual
- (4) Custom mounting plates
- (8) T-Slot Nuts for Truck Rack Systems
- (8) T-Slot Nuts for Aero Style Roof Racks
- (8) Short Mounting Plate Bolts
- (16) Long Carrier Bolts
- (8) Washers/Spacers
- (2) Installation Wrench
- (1) Instruction
