Axis™ Bed Extender with Single VersaRail™



Scroll Down To View Complete Product Description and Details


VERSARAIL™ USER MANUAL
AXIS™ USER MANUAL

The Axis™ Truck Bed Extender is made of heavy duty steel and powder coated to resist corrosion. It can be used in either the vertical position as a rear of vehicle load bar, or the horizontal position to extend the bed of a truck. The Axis™ fits 2" receivers and has multiple settings for both height and width. The 58" VersaRail™ load bars instantly transforms a bare roof into a functional platform for transporting kayaks, canoes or lumber. The VersaRail™ comes partially assembled and ready to install to combine with the Axis™.

Features:

  • 8 height settings (56" - 63")
  • 10 width settings (32"- 48")
  • Side arm load containment
  • 2" receiver with hitch pin
  • Anti-wobble bracket
  • Powder coat finish
  • No additional tools required (wrench provided)
  • Corrosion resistant load bar coating
  • Rectangular shape fits most rack accessories
  • 75 lb pull strength vacuum tower bases
  • 1.5" wide safety attachment straps
  • Delivered complete and ready to install
  • 135 lb load capacity
  • Lifetime Limited Warranty (Axis™)
  • Five Year Limited Warranty (VersaRail™)

Specifications:


Installation:

  • The VersaRail™ is for temporary use only. Remove when not in use. See user manual for details.

What’s In The Box:

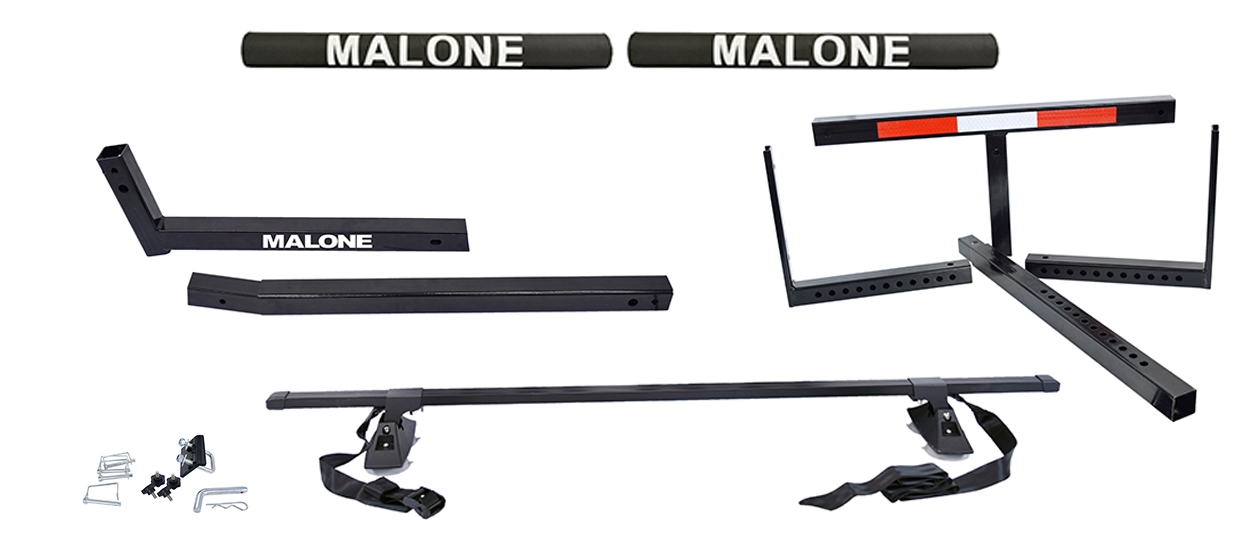

    Axis™
  • (2) Left and Right Side Arms
  • (1) Receiver Hitch Mast
  • (1) T- Cross Bar
  • (1) Center Mast
  • (1) Receiver Hitch Pin
  • (1) Anti-Wobble Bracket
  • (1) Hardware Kit
  • (1) Instruction Manual
    VersaRail™
  • (1) 58" Crossbar with Attachment Straps
  • (2) Tower Bases with Attachment Hardware
  • (2) Rubber End Caps
  • (1) 6mm Allen Wrench
  • (1) Instruction Manual

Wet Strap WARNING:

Prop 65 WARNING for California residents:

: *
: *
: *
