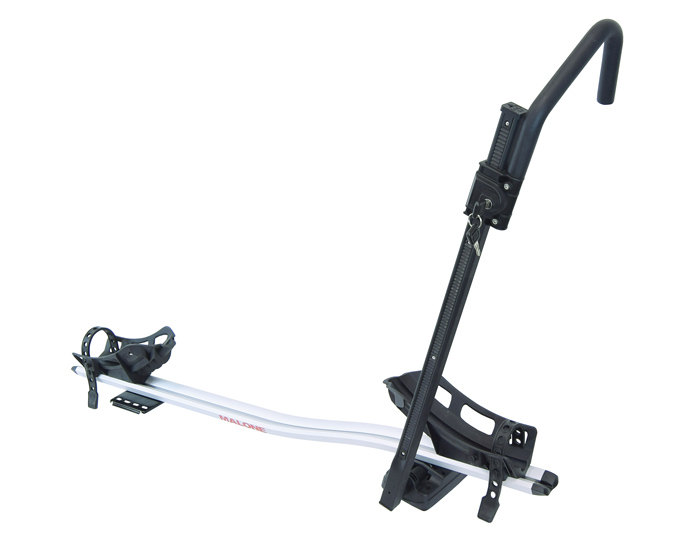

Pilot™ TC ST - Top of Car Curved Tray Style Bike Carrier - 51"


USER MANUAL
SPARE PARTS LISTING
LIMITED LIFETIME WARRANTY

The MPG2103 Pilot™ TC ST carrier is a 51" curved tray style top of car rack system featuring a locking ratchet arm. Compatible with practically all factory installed and aftermarket aero, square and round cross bars. The Pilot™ TC ST holds your bike by the front wheel eliminating most frame contact. Ideally suited for use with carbon fiber frames, road, mountain, downhill, BMX, and fat tire bikes.

Features:

  • 51” tray length fits most car top applications
  • Compatible with disk brake, thru-axles and unconventional frame designs
  • Key locking ratchet arm to deter theft
  • Adjustable wheel holders accommodate multiple wheel sizes and tire widths
  • Universal fit brackets are compatible with most factory, aero, square and round load bars
  • Aluminum and steel construction

Specifications:

  • Load Capacity: One bike x 33 lb
  • Ratchet locking with 2 keys
  • Weight: 10 lb
  • Fits 20" to 29" wheels and up to 5”wide fat tires
  • Dimensions: 51" x 12" x 6"
  • Lifetime Limited Warranty
  • Compatible with most load bars up to 2" tall x 3.5" wide (use 85mm bolts provided)
Note: Not compatible with tandem or long wheel base recumbent bikes. Some assembly required.

Installation:

  • Please review instructions and register your warranty prior to first time use.
  • Note: Mounting bolts may make slight contact with the outer edge of some aftermarket cross bars. This normally will not inhibit installation.

What’s In The Box:

  • (1) 51" Aluminum Curved Wheel Tray
  • (1) Front Ratchet Arm and Base Assembly
  • (1) Rear Plate Assembly
  • (3) Universal Fit Mounting Brackets
  • (2) Wheel Cradles with TPU Wheel Straps
  • (2) Keys
  • (2) Tray End Caps
  • (1) Hardware Kit (Universal Adapters & T-Knobs)
  • (8) M6 x 1mm zinc coated 60mm Mounting Bolts
  • (8) M6 x 1mm zinc coated 85mm Mounting Bolts
  • (1) Instruction Manual
