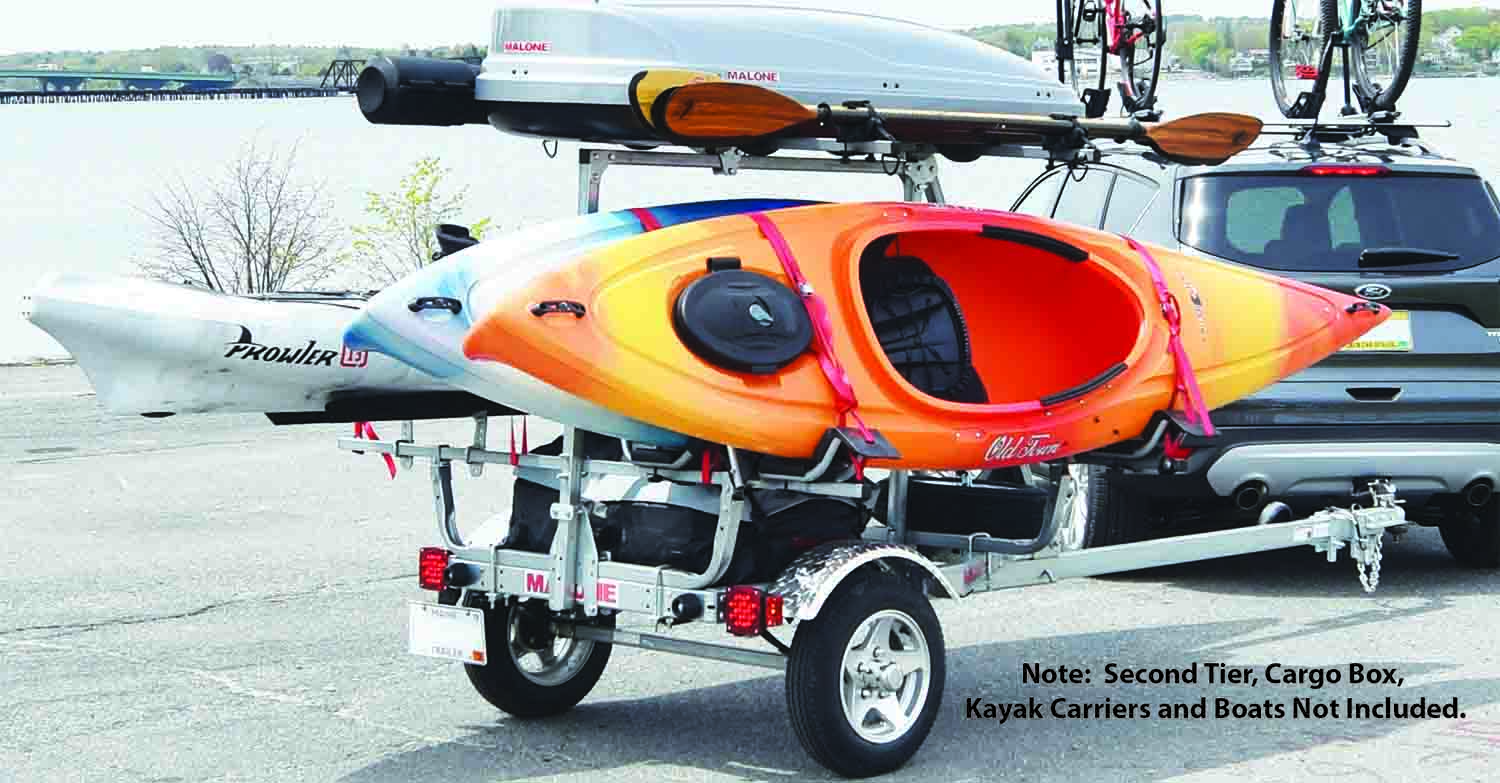

MicroSport™XT Trailer with Aluminum Wheels, Aluminum Fenders and Retractable Tongue Kit

Oversized delivery charge. $175 Per MicroSport Trailer.

Scroll Down To View Complete Product Description and Details

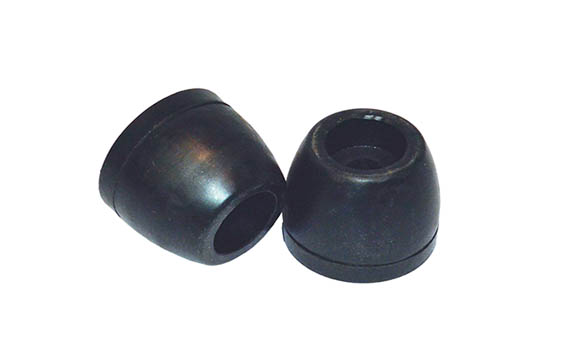

The MicroSport™ XT is an upgraded Base Trailer and features some of our best selling options. The Retractable Tongue Kit is great for garage storage and allows the trailer to be stored vertically (kit includes rear rubber bumpers). For trailer presentation, the Aluminum Spoke Wheels and Diamond Plate Aluminum Fenders deliver a great overall custom look, and, enhanced corrosion protection.

This is simply the best outfitted mid-range chassis for trailering boats and bikes on the market. Reasonable priced. Made in the USA. Ensured with a Five Year Limited Warranty.


Features:

  • Pre-assembled hubs for a clean and simple installation

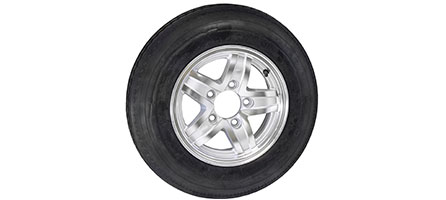

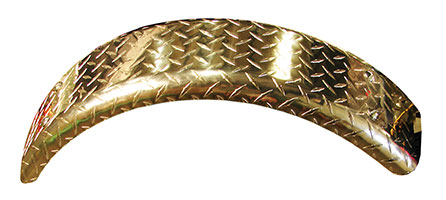

  • MPG496 Aluminum Spoke Wheels & Aluminum Fenders
  • MPG494 Retractable Tongue Kit

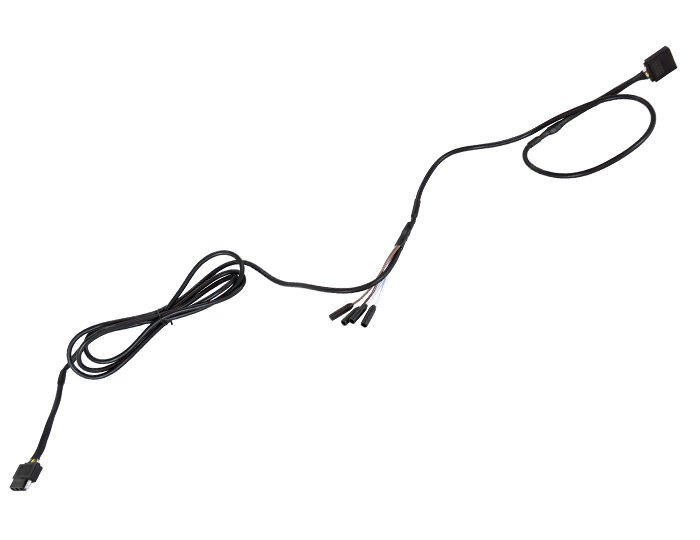

  • DOT approved LED "Plug N' Play" lights
  • Reinforced steel tongue can transport boats up to 20' in length
  • 78" steel rectangular load bars with D-ring tie-downs
  • 11 gauge galvanized steel construction for years of service
  • Five Year Limited Warranty - Made in the USA

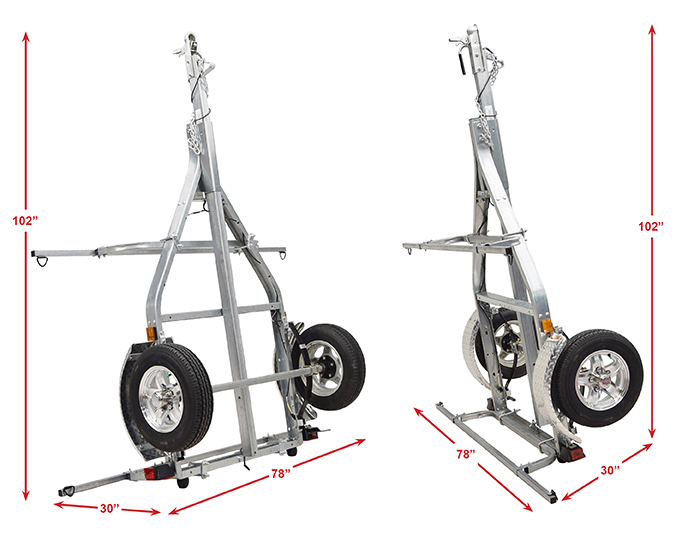

Specifications:

  • Load Capacity: 800 lb / 20' canoe or kayak
  • Dimensions: 13' 3" (length)
  • Width (Without crossbars): 55"
  • Frame Width Assembled (Width within Fenders): 40"
  • Weight (Without accessories): 230 lb
  • Frame: Marine grade galvanized steel
  • Hitch: 2" Class II receiver
  • Required Ball Size for Vehicle Attachment: 2"
  • Mounting Height for Ball from Ground: 15"
  • Recommended Tire Pressure: 35 to 40 PSI
  • Tongue Weight (Unloaded): 25 lb
  • Cross Bar Spread (Adjustable): 44" - 63"
  • Height of Cross Bars from Ground: 30"

What’s In The Box:

  • (2) 12" Aluminum Wheels
  • (2) Aluminum Fenders
  • (1) Retractable Tongue Kit
  • (1) Reinforced Steel Tongue
  • DOT Approved LED Lighting
  • Pre-Tested Electrical System
  • Pre-Fitted Chassis Components
  • (1) Instruction Manual & Registration Documentation
  • Total Shipment: Four cartons + tongue. Five total.

Details / Manuals

Click To Download


Spare Tire for MicroSport Trailer - 12" Galvanized - w/ Locking Attachment

Spare Tire for MicroSport Trailer - 12" Galvanized - w/ Locking Attachment

There's no good time for a flat tire, especially at your favorite campsite miles from the nearest help. This DOT approved 4.80 x 12 two ply trailer tire has a 785 lb load capacity and is capable of safely maintaining any posted speed limit in the United States or Canada. Furnished with trailer frame locking attachment. Lock required.

Trailer Tongue Kick Stand for XtraLight and MicroSport Trailers

Trailer Tongue Kick Stand for XtraLight and MicroSport Trailers

Replace the standard tongue skid plate with the Trailer Tongue KickStand. Keeps the trailer level when unhitched and makes it easier to connect to the tow vehicle. Large integrated wheel allows the trailer to be easily rolled to the desired location. The spring release locks the wheel assembly into the down position for use, or, in the up position for travel.

MicroSport™ 2nd Tier Kit with Load Bars

MicroSport™ 2nd Tier Kit with Load Bars

The Malone MPG474 Second Tier Kit lets you upgrade your Malone MicroSport trailer by adding a second level for additional load capacity. Great for transporting another kayak, canoe or cargo box. Five Year Limited Warranty. Installs in minutes - No drilling required.

Trailer Storage Trunk for XtraLight and MicroSport Trailers

Trailer Storage Trunk for XtraLight and MicroSport Trailers

The MPG481 Trailer Storage Trunk offers on-board storage space for smaller gear & clothing. The lid is easily removable from the trunk and can be locked for added security (locks not included). Shipped with galvanized mounting brackets that provide a perfect fit into the trailer's framework. Includes 9' load & tie-down strap. Offered with a Five Year Limited Warranty.

Fiberglass Safety Pole for Trailers

Fiberglass Safety Pole for Trailers

The Fiberglass Safety Mast is a perfect way to keep tabs on your trailer while traveling or backing up. An excellent and smart choice for owners of tall vehicles that obstruct view while in tow. Keeps the trailer visible for both for the tow vehicle and drivers following behind. Supplied with mounting bracket and covered by a Five Year Limited Warranty.

Tray Style Bike Rack For Trailers

Tray Style Bike Rack For Trailers

The MPG2100 Upright Bike Carrier provides safe transport for one bicycle on the Malone XtraLight and MicroSport trailers. Features an extra-long tray to fit a wider bar spread. Key locking to prevent opportunistic theft. Fits tires up to 5" wide. Five Year Limited Warranty.

36" SUP Transport Pads for Trailers (set of 2)

36" SUP Transport Pads for Trailers (set of 2)

Installs under the load bars and attached directly to the MicroSport™ trailer frame. The 36" long, MPG553 SUP Pads protect and transport standup paddle boards which can require extra padding to avoid abrasions and scratches. Sold in sets of two and provided with a one year limited warranty to ensure customer satisfaction.
