1-Trailer, 1-Spare Tire Kit, 2 - FoldAway-J™, 2-Tray Style Bike Racks

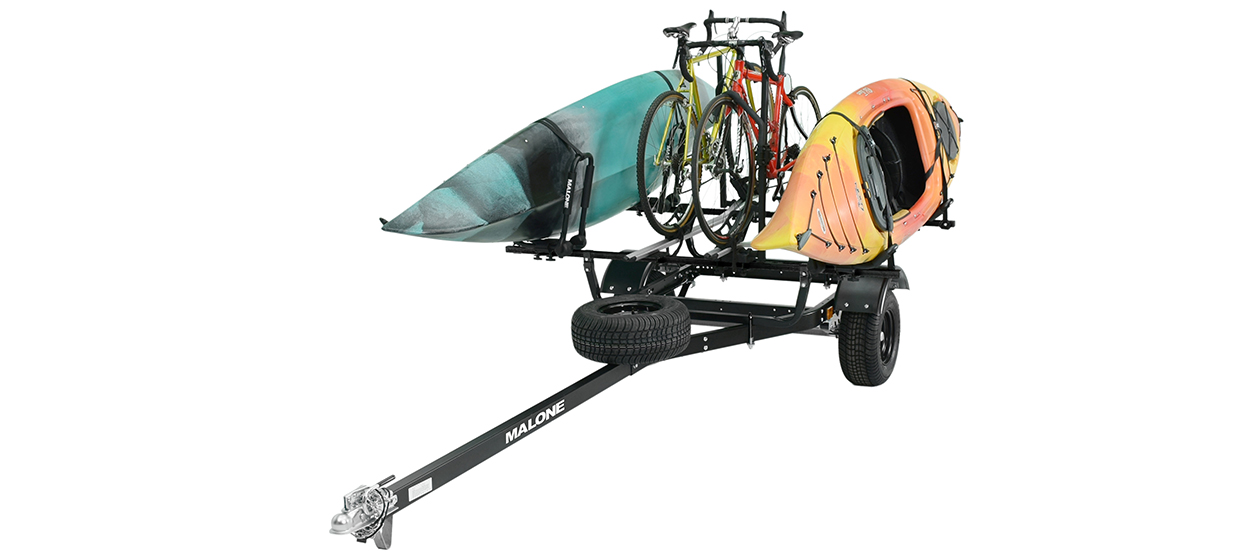

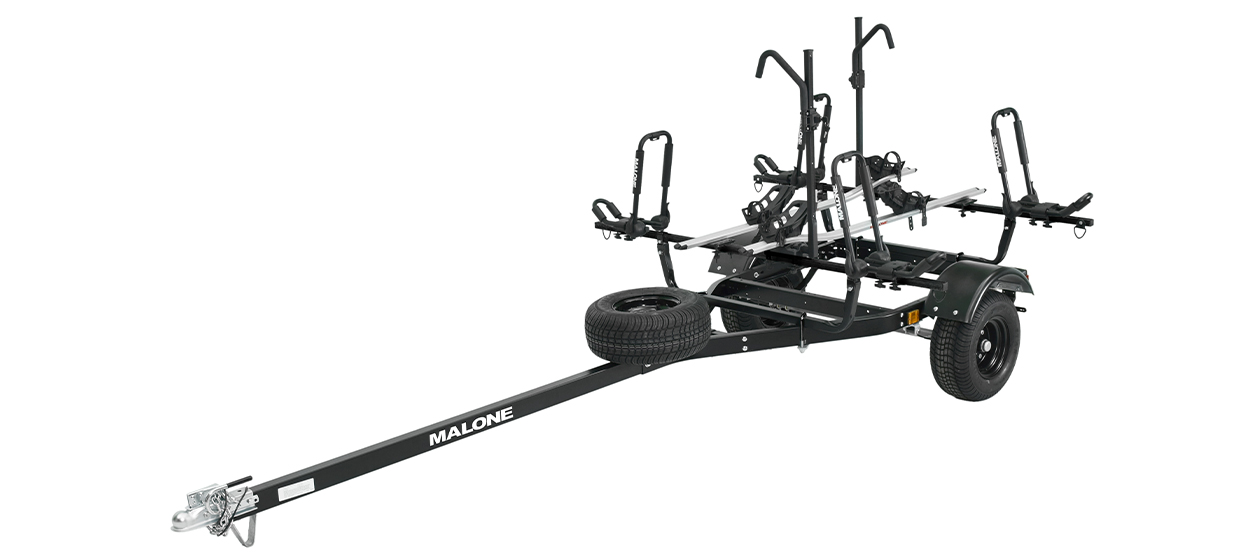

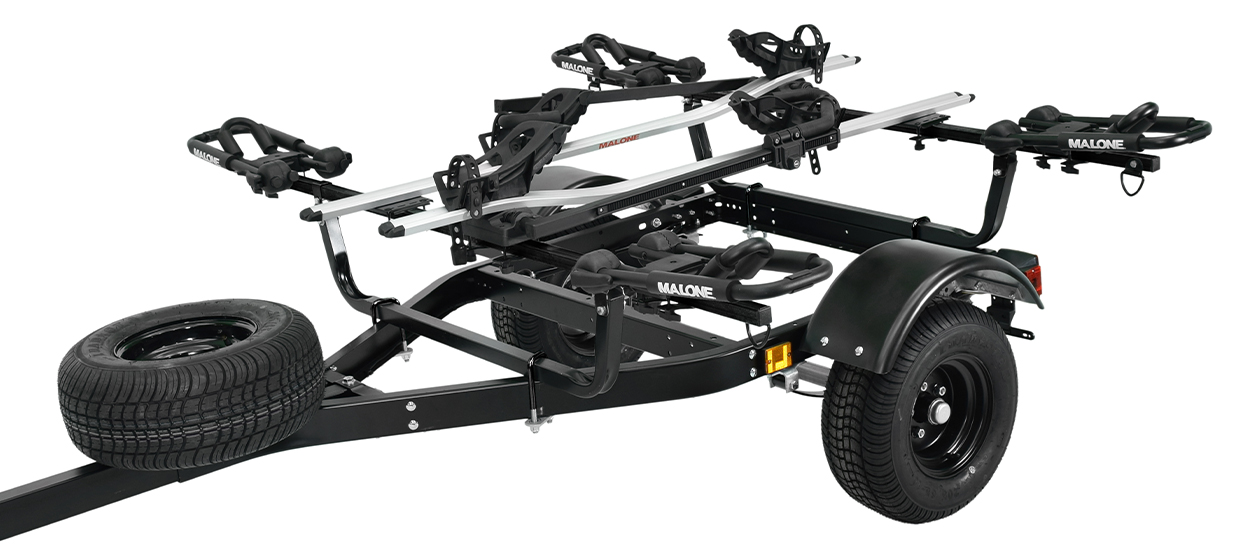

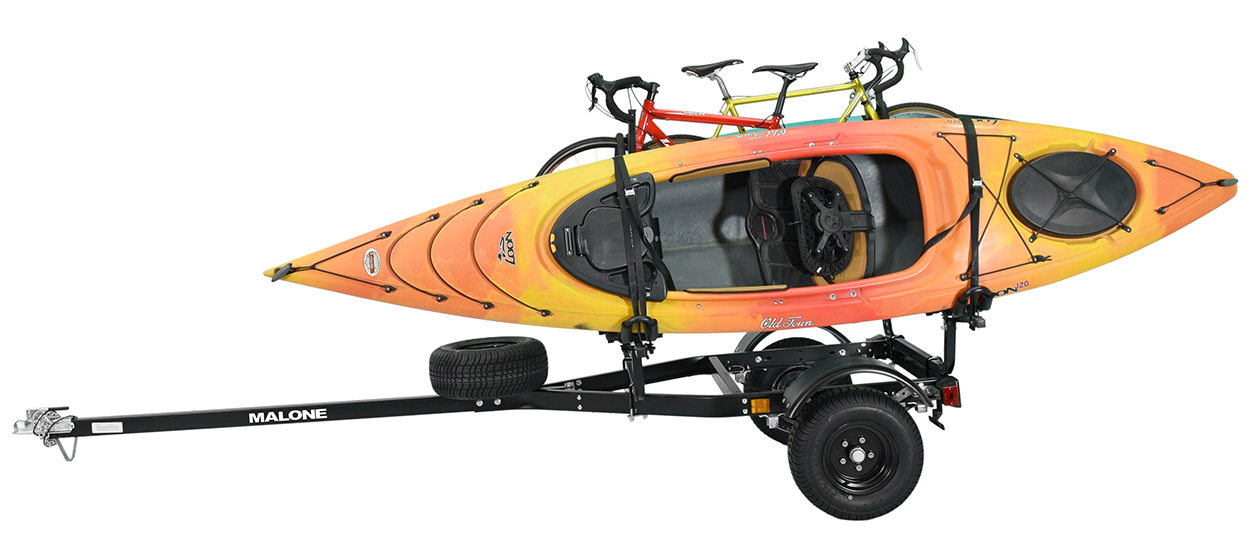

MicroSport™ Off-Road 2 Kayak/2 Bike Trailer Package (2 Sets J-Racks, 2 Bike Racks, Spare Tire)

MicroSport™ Off-Road 2 Kayak/2 Bike Trailer Package (2 Sets J-Racks, 2 Bike Racks, Spare Tire)

Ask Question About This Product

Printable version

Share

Details

TRAILER USER MANUAL
USER MANUAL - BIKE RACKS
USER MANUAL - J-RACKS
5 YEAR LIMITED WARRANTY

An off-road capable sport trailer for transporting 2 kayaks and 2 bicycles.

The MicroSport™ Off-Road Trailer is FULLY SUBMERSIBLE and offers a unique BLACK POWDER COAT OVER A PRE-GALVANIZED STEEL frame creating one of the most rust-preventive coatings in the industry. Each kit is comprised of a sturdy steel tongue, a “plug-&-play” LED submersible lighting system that meets DOT standards, 78" steel load bars, and large oversized pontoon tires. With the use of common tools, assembly can be accomplished in around three to four hours. Backed by a Five-Year Limited Warranty and proudly crafted in the United States.

Features:

MicroSport™ Off-Road Trailer
Spare Tire for MicroSport™ Off-Road Trailer
65" Curved Tray Style Bike Rack For Trailers
FoldAway-J™ Kayak Carriers
Pre-assembled marine grade sealed hubs for a clean and simple installation
Oversized pontoon tires suitable for off-road travel
Transport boats up to 20' in length
78’’ steel, 1 ¼’’ square load bars featuring D-ring tie-downs

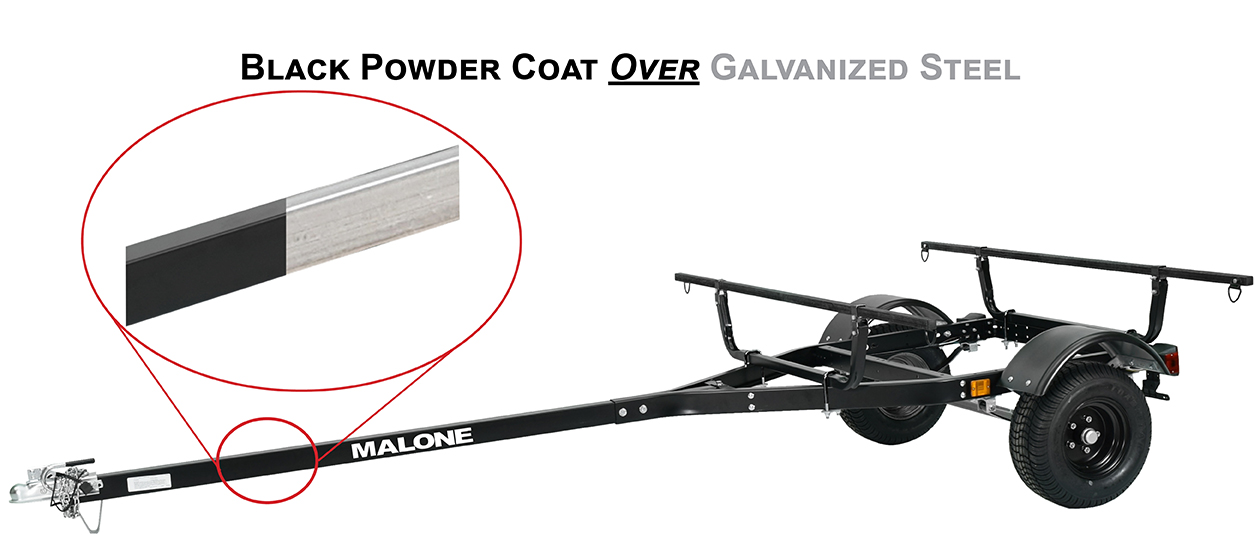

Pre-galvanized, black powder coated steel for excellent corrosion resistance
“Plug & Play” Submersible LED light kit (DOT and Transport Canada approved)
Five Year Limited Warranty – Made in the USA

Specifications:

Trailer load capacity: 800 lbs. / up to 20' long canoe or kayak
FoldAway-J™ load capacity: 75 lbs. per boat
Bike rack capacity: 33 lbs. per bike
Length: 13' 3"
Width: (without crossbars): 55"
Frame width assembled: (width within fenders): 40"
Total weight: 260 lbs.
Frame: 11-gauge powder-coated, marine grade galvanized steel
Required ball size: 2"
Ball height: 18" from ground to top of ball
Recommended tire pressure: 35 to 40 PSI
Tongue weight (unloaded): 25 lbs.
Cross bar spread (adjustable): 44" - 63"
Cross Bar Length: 78”
Height of cross bars from ground: 30"

What’s In The Box:

(1) MPG440BLK MicroSport™ Off-Road Base Trailer
(1) MPG445 Full Size Spare Tire with Lockable Attachment
(2) MPG132 FoldAway-J™ Kayak Carriers with Hardware & Straps
(2) MPG2100 Tray Style Bike Racks
(1) Instruction Manuals & Registration Documentation
Assembly Required - Multi-Boxed Item - Includes 8 Cartons
