Pilot™ HM2

Details


SKU	MPG2112
Set Your Price:	-

Description

SKU: MPG2112
UPC: 856561006360

USER MANUAL
SPARE PARTS LISTING
LIMITED LIFETIME WARRANTY

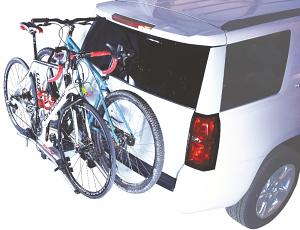

The Pilot HM2 is a two bike, hitch style platform carrier for 2" hitch receivers only. This system can be integrated with the Co-Pilot2 which converts overall capacity from a two bike carrier to a four bike carrier. This modular design with optional expansion capability makes the Pilot HM2 a great choice. For cross-town transport to the trails or loaded up for a road trip, the Pilot HM2 provides safe and confident delivery. Constructed of powder coated steel and marine grade aluminum, the Pilot HM2 requires a 2” receiver (the extra strength is needed when adding the Co-Pilot 2). The padded ratchet arms hold the bikes securely by the front wheel. Ideal for carbon framed, full suspension, and fat tire bikes. Lifetime Limited Warranty. Some assembly required.

Features:

Two bike capacity or four bike with optional MPG2115 CO-Pilot 2
Folds up when not in use.
Folds down with bikes loaded for rear-of vehicle access.
Secures bike with adjustable pivoting ratchet arm.
Bike to bike contact is eliminated by arm and wheel tray mounts.
Best for carbon frames, road, mountain, downhill, bmx, and fat bikes.
Securely carries 20” to 29” wheels and tires up to 5”
Includes anti-wobble locking hitch pin.
Semi-retracting key lock security cable.

Specifications:

Two bike capacity - Four bike with addition of MPG2115 (sold separately)
Load Capacity: 33lb weight maximum per bike
Aluminum and steel powder coated construction
Fits 2" hitch receiver only
This bike rack is not intended for transporting tandem or recumbent bicycles.
Fits bikes with wheelbases between 24" and 46".
Product Weight: 36 lbs
Dimensions: 31" x 39" x 15"
Lifetime Limited Warranty
Some assembly required.

What’s In The Box:

(1) 2.00" Receiver Mast
(2) Ratchet Arm Assemblies
(2) Arm Base Brackets
(1) Aluminum Arm Base
(2) Aluminum Wheel Trays
(4) Wheel Tray End Caps
(1) Steel Chassis with Removable End Cap (to fit MPG2115)
(4) Wheel Cradles with TPU straps
(1) Hardware Kit
(1) Anti-wobble Locking Hitch Pin
(1) 4mm Allen Wrench
(1) Multi-Wrench
(2) Keys for Rack
(2) Keys for Locking Hitch Pin
(1) Instruction Manual
