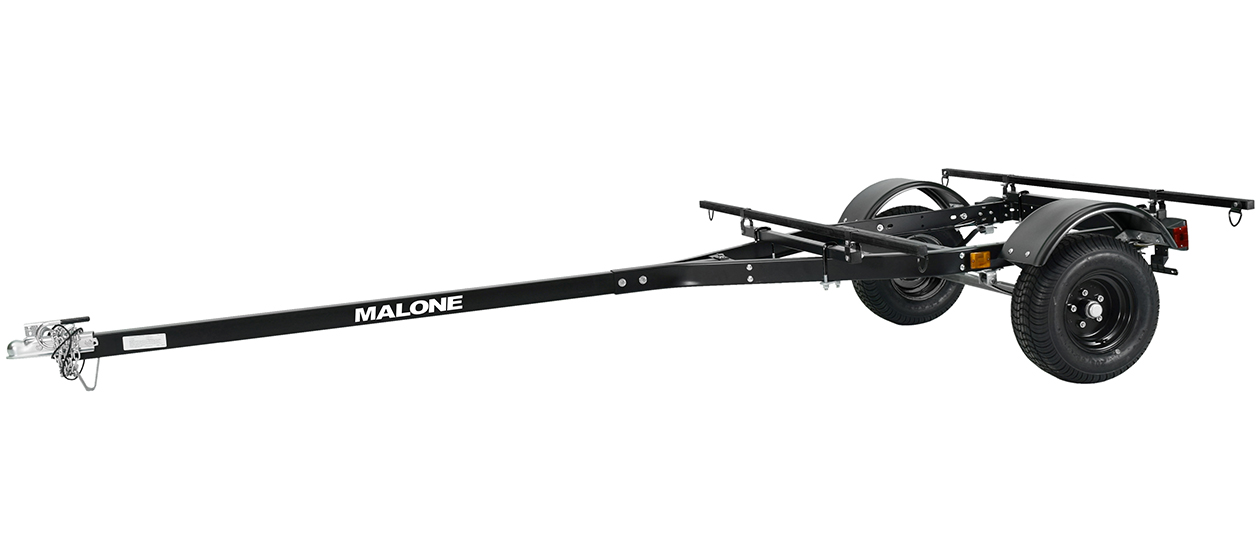

MicroSport™ Off-Road LowBed™ Trailer

Details


SKU	MPG444LB-BLK
Set Your Price:	-

Description

USER MANUAL
LIMITED FIVE YEAR WARRANTY

An easy-to-load off-road capable sport trailer.

The MicroSport™ Off-Road LowBed™ Trailer is FULLY SUBMERSIBLE and offers a unique BLACK POWDER COAT OVER A PRE-GALVANIZED STEEL frame creating one of the most rust-preventive coatings in the industry. This trailer is identical to the base MicroSport Off-Road trailer except with lowered crossbars for ease of loading. Each kit is comprised of a sturdy steel tongue, a “plug-&-play” LED submersible lighting system that meets DOT standards, 78" steel load bars, and large oversized pontoon tires. With the use of common tools, assembly can be accomplished in around three to four hours. Backed by a Five-Year Limited Warranty and proudly crafted in the United States. NOTE: NOT COMPATIBLE WITH MPG494 RETRACTABLE TONGUE KIT.

Features:

Lowered crossbar height to comfortably load kayaks and canoes
Pre-assembled marine grade sealed hubs for a clean and simple installation
Oversized pontoon tires suitable for off-road travel
Transport boats up to 20' in length
78’’ steel, 1 ¼’’ square load bars featuring D-ring tie-downs
Pre-galvanized, black powder coated steel for excellent corrosion resistance
“Plug & Play” Submersible LED light kit (DOT and Transport Canada approved)
Five Year Limited Warranty – Made in the USA

Specifications:

Load capacity: 800 lbs. / up to 20' long canoe or kayak
Length: 13' 3"
Width: (without crossbars): 55"
Frame width assembled: (width within fenders): 40"
Total weight: 195 lbs.
Frame: 11-gauge powder-coated, marine grade galvanized steel
Required ball size: 2"
Ball height: 18" from ground to top of ball
Recommended tire pressure: 35 to 40 PSI
Tongue weight (unloaded): 25 lbs.
Cross bar spread (adjustable): 44" - 63"
Cross Bar Length: 78”
Height of cross bars from ground: 22"
NOTE: NOT COMPATIBLE WITH MPG494 RETRACTABLE TONGUE KIT.

What’s In The Box:

(1) Instruction manual & registration documentation
Assembly required - Multi-Boxed item - Includes 5 cartons
